Making Cam Clamps – The Cams

Part 1

I’m getting more set up to build things and I’m focussed on cam clamps while organizing my shop and tools. For more information about them see this: Cam Clamps at Rockler.

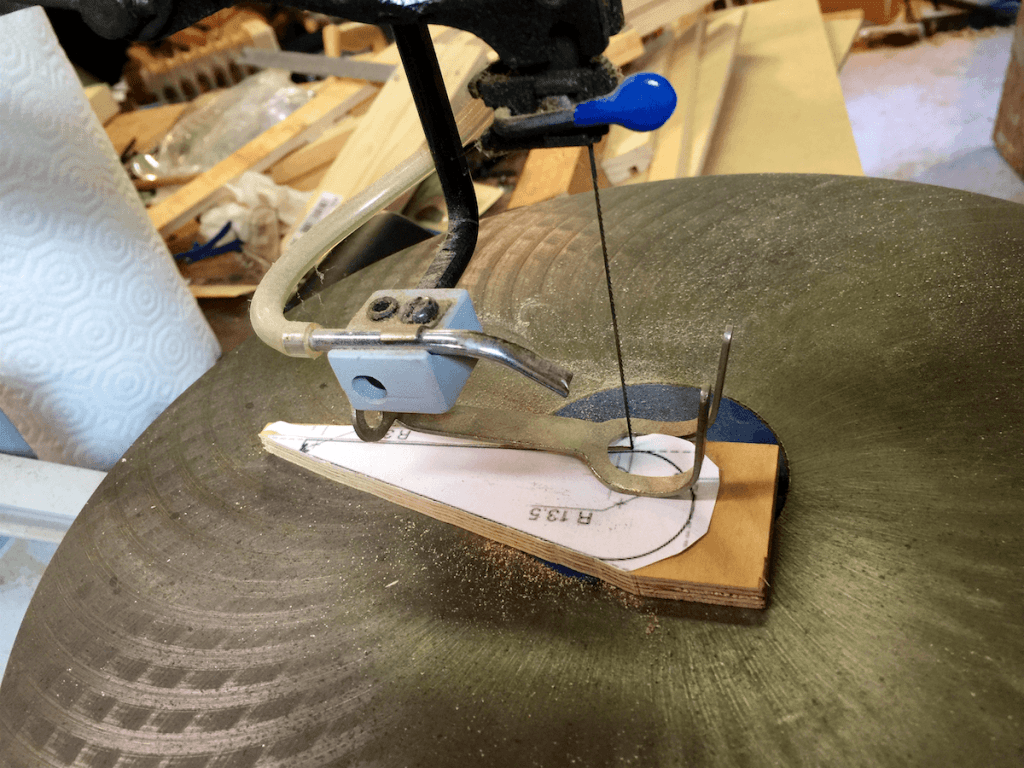

The first step was to make a template I could use to make all the other cams. Here I am cutting out the template on the scroll saw. It’s made out of 1/4" Baltic Birch plywood.


Next is to use the template to layout some cams and cut them out to their rough shape. These are made from a piece of cherry I had laying around that was the right thickness.


I used a spindle sander to take them down to their final shape. Here’s the first batch.

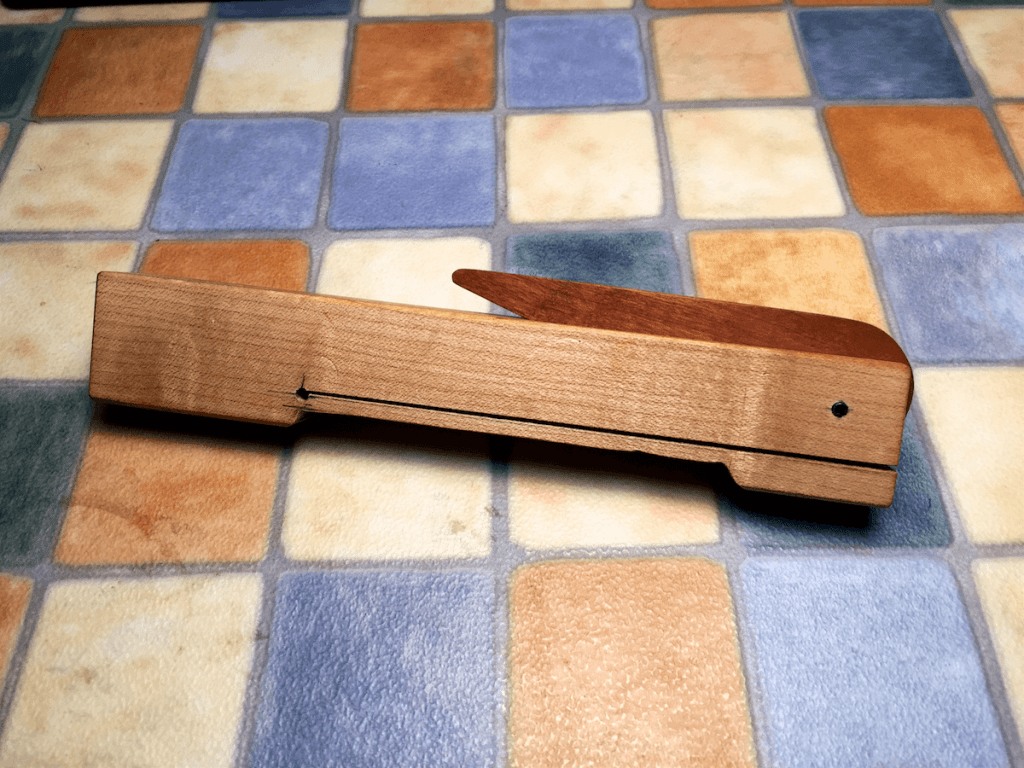

Here’s the first clamp top piece I’m using as a trial build. I’ve always thought this kind of clamp has a personality.

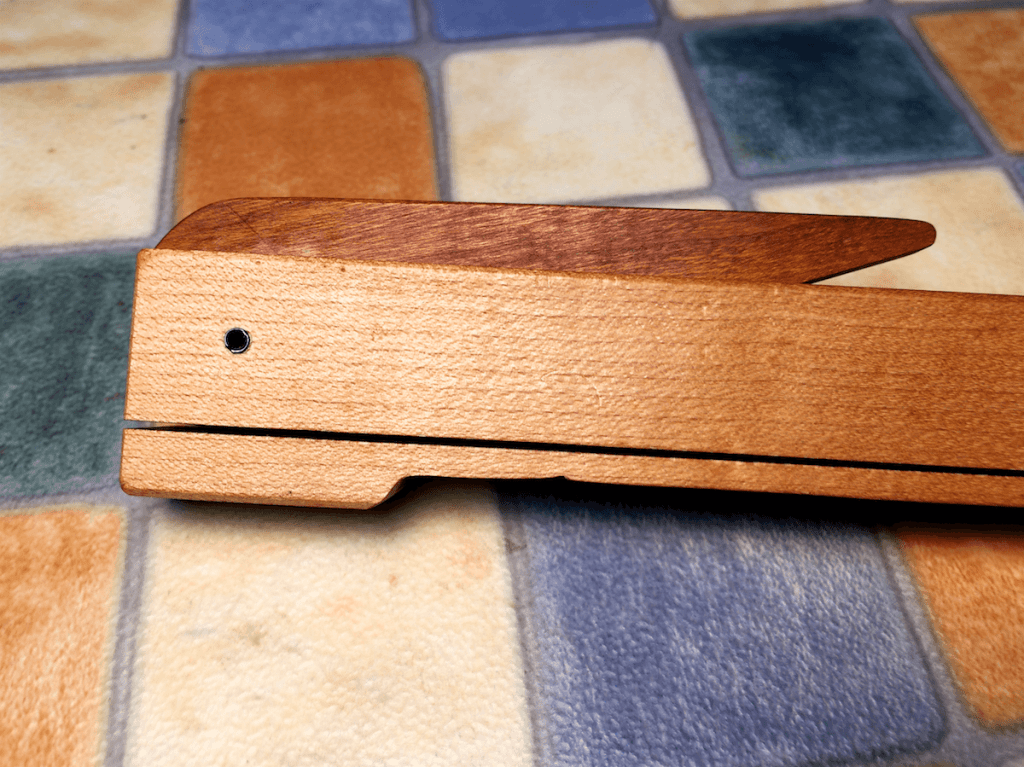

The trial seems to be working. Here’s a closeup with the cam not engaged.

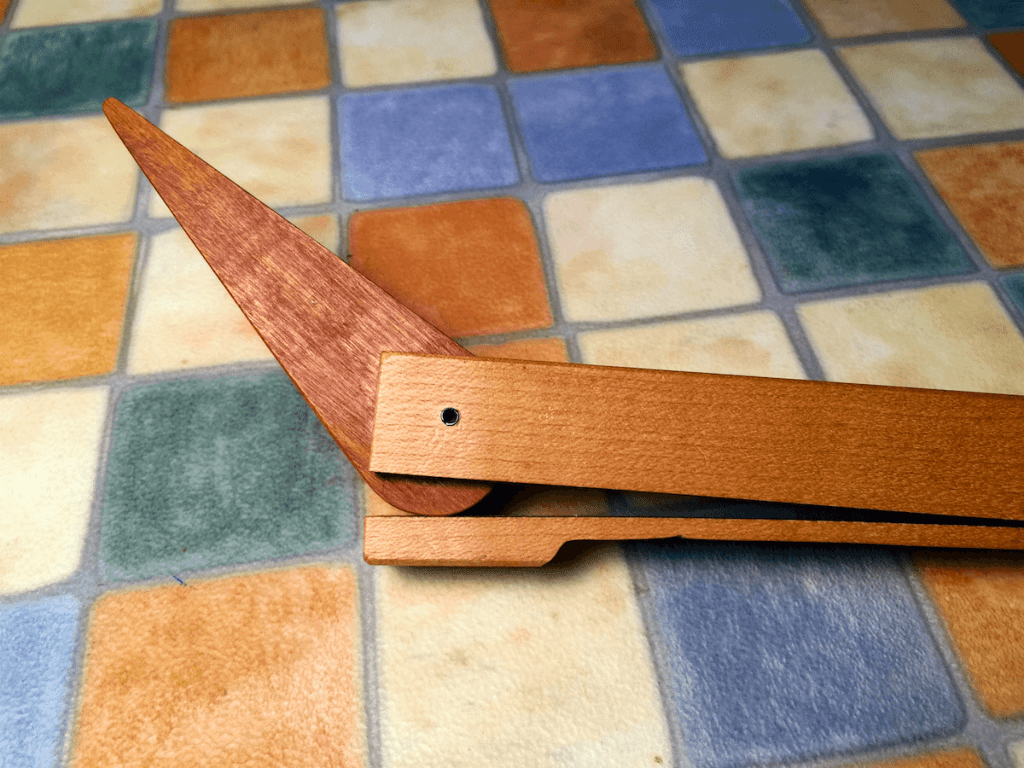

Flipping the cam expands the jaw and makes for a nice, lightweight clamp with many uses. (It looks like a happy clamp, doesn’t it?)


Next is to fully assemble the trial and see what I think.
