The Back is Ready

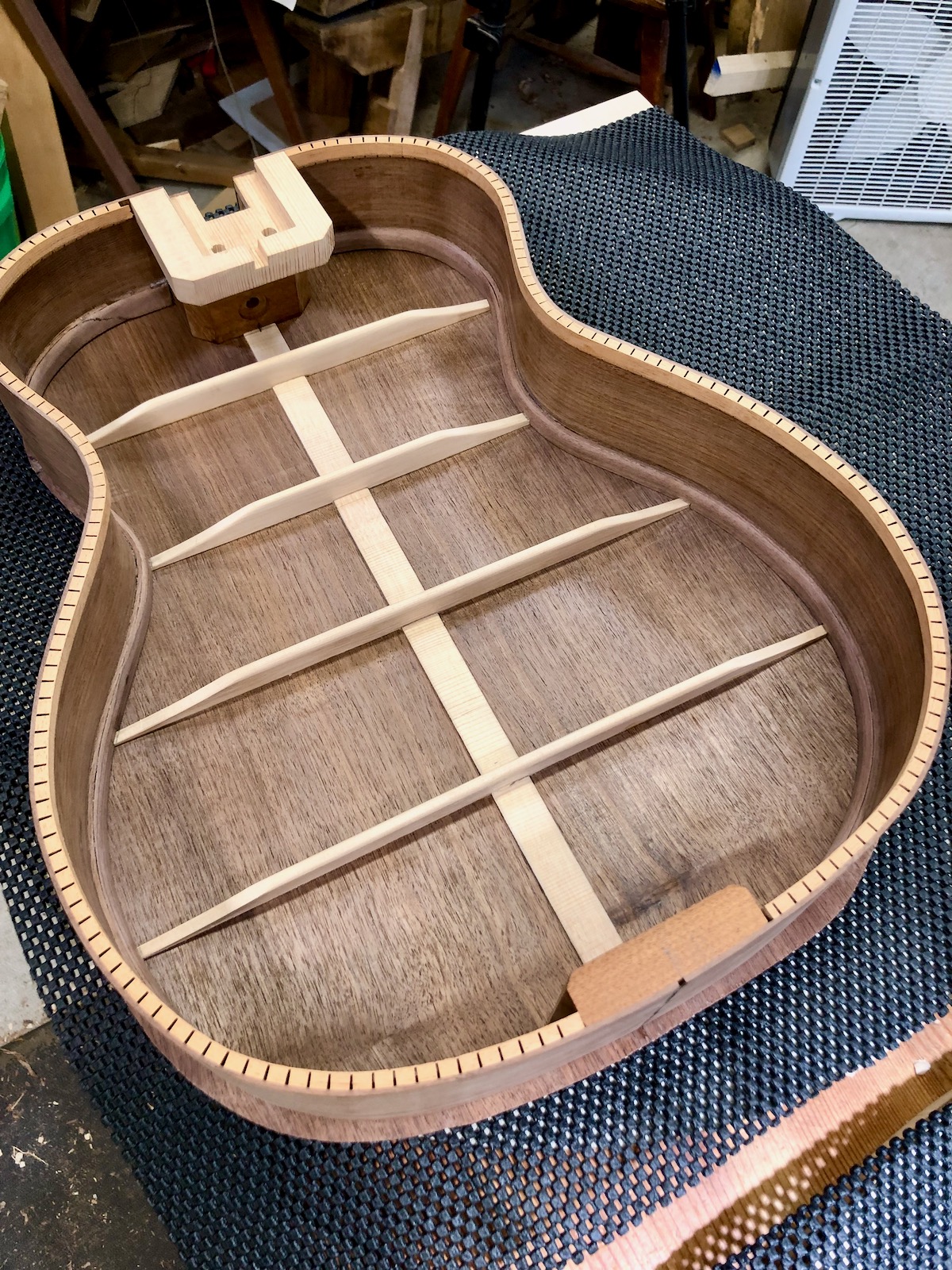

The back is ready to be glued to the rims. This was a fun step. I enjoyed shaping the braces a lot.

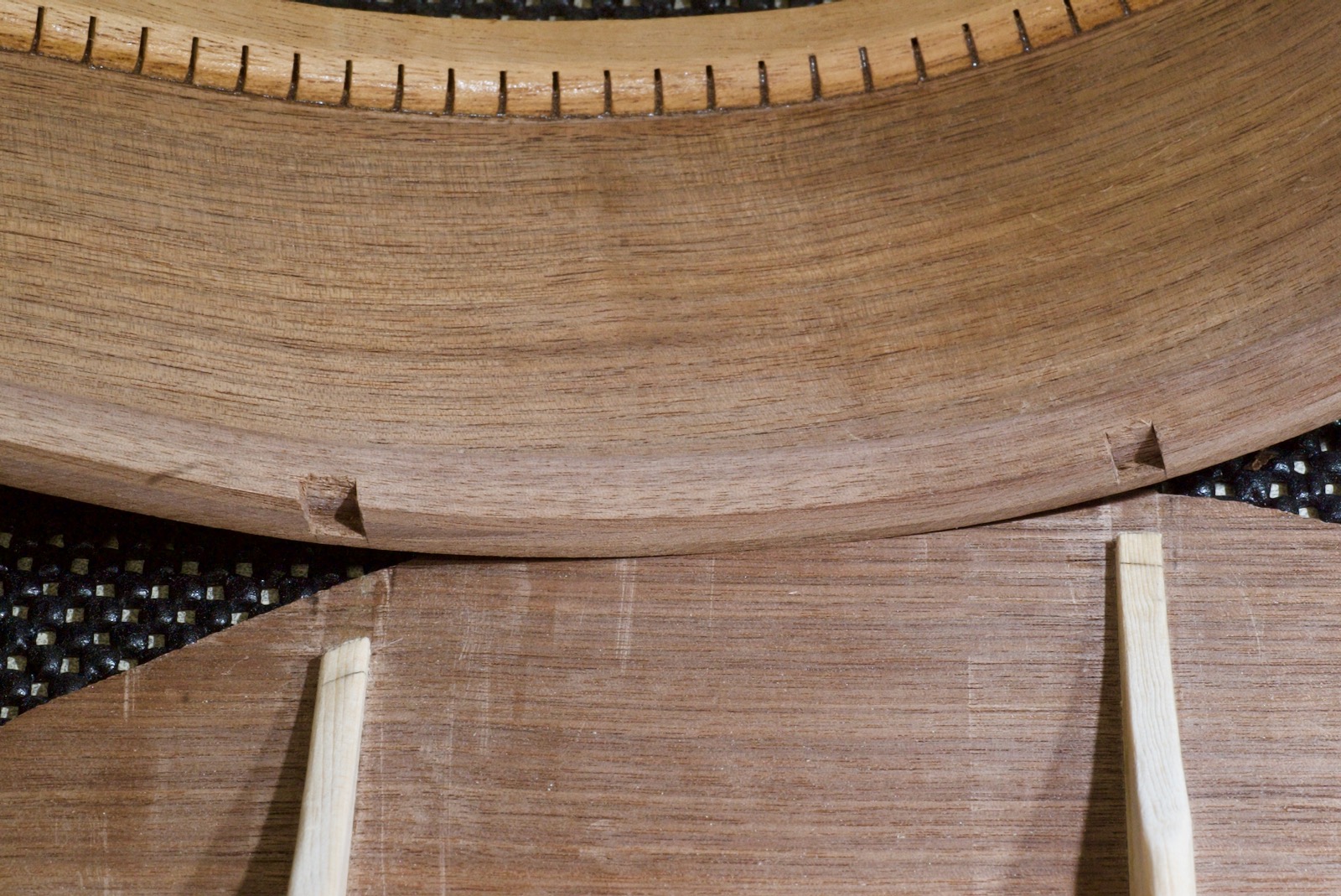

This shows the small notches that I cut in the side linings.


I used these tools to cut the notches. From left to right: a good pencil, a 1/8″ chisel, a 1/12″ chisel, a 1/4″ chisel, and a marking knife. I made the 1/12″ chisel. I started with a 1/8″ one and ground down the sides. I was aiming for 1/10″ but got carried away. It has proven to be very useful.

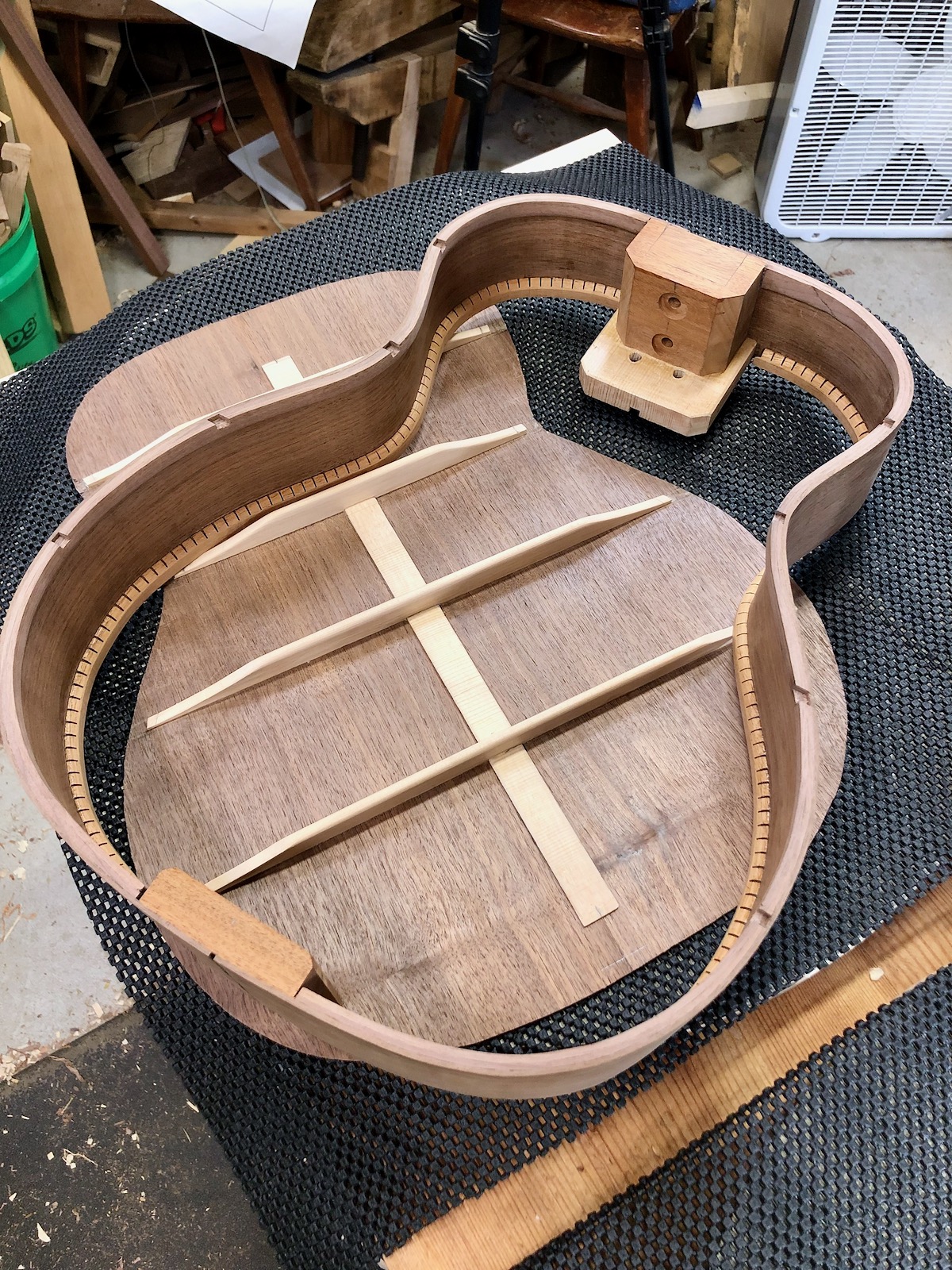

Here’s a lower-angle shot that shows the profile of the braces better.


Here are a couple of closeups just for fun.

I’ll glue the box together once the top is ready.
